Product Description

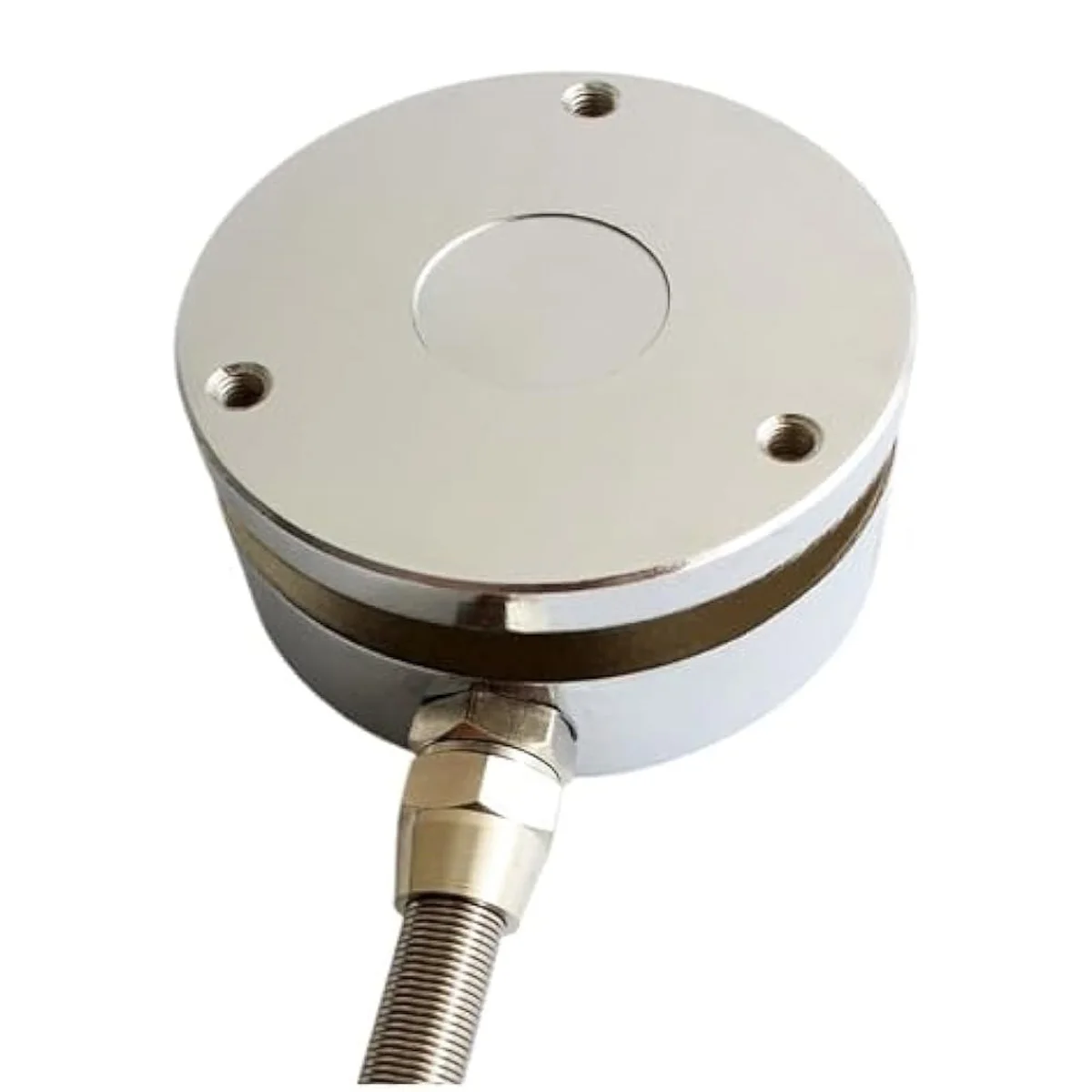

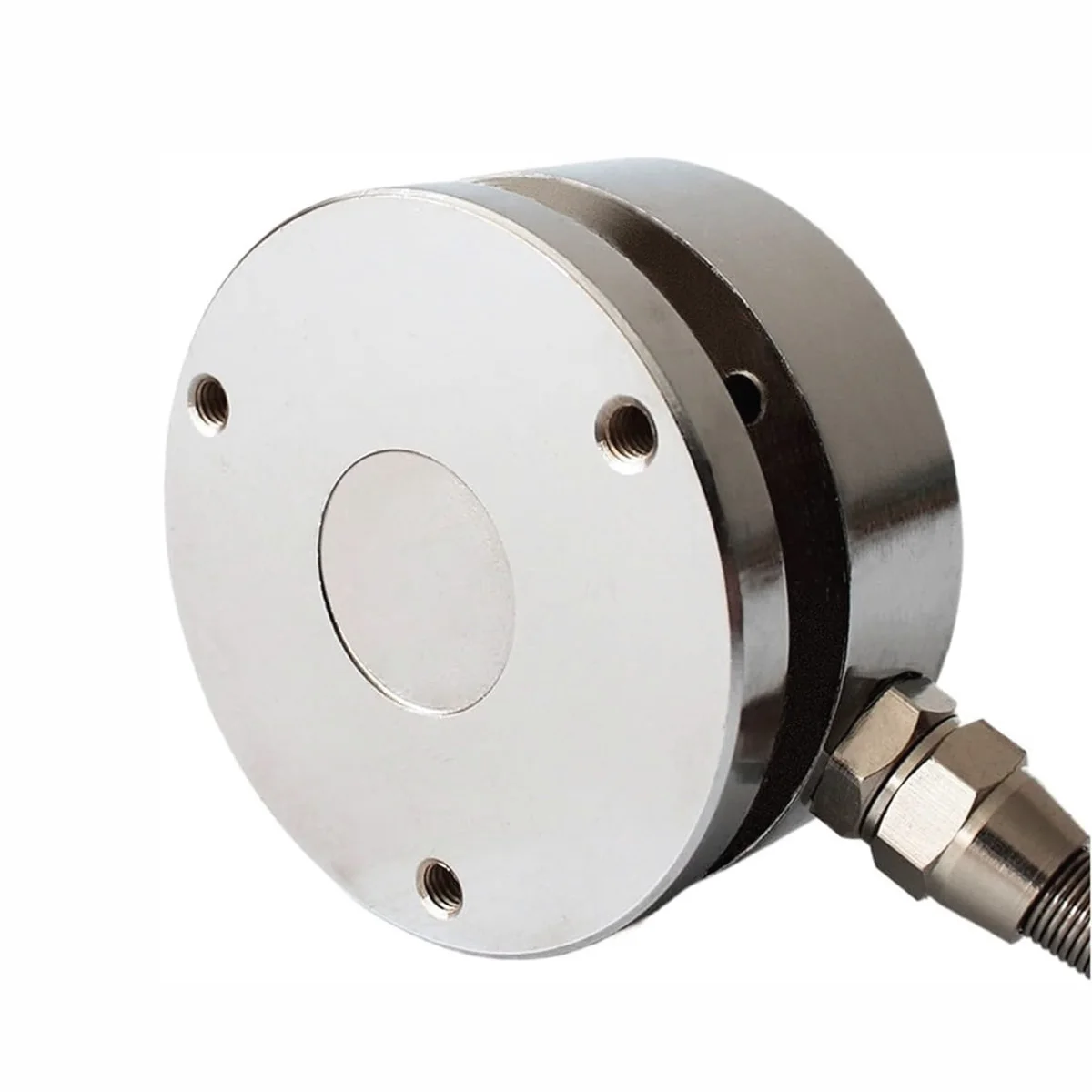

Compression load cell
The pressure sensor has both pulling and pressing functions, good symmetry, compact structure, suitable for electronic scales, hook scales, hopper scales and various special scales.
Connectors need to be purchased separately

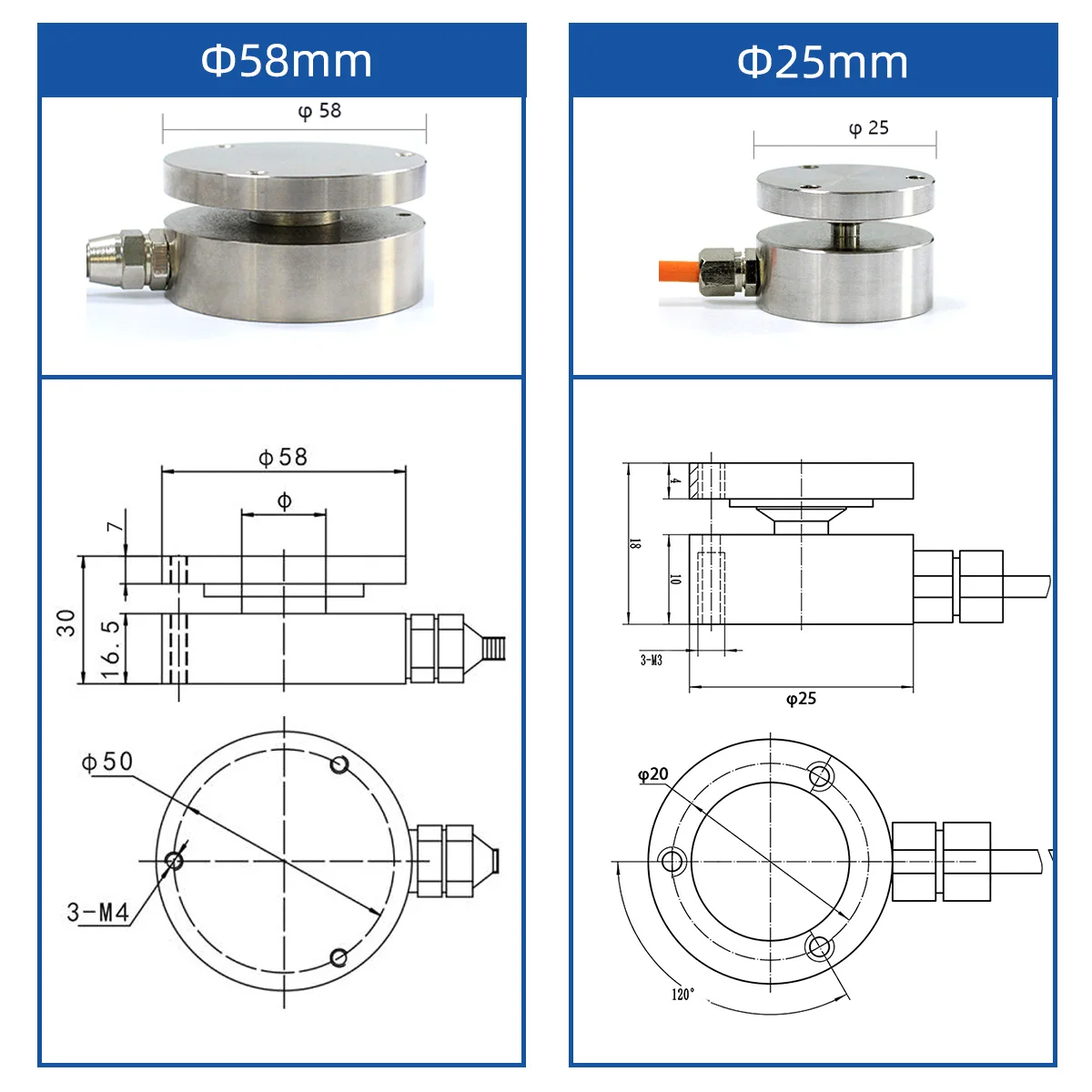

About 58mm & 25mm
If you need a sensor with a diameter of 25mm, please contact me after creating the order, otherwise we will send you a sensor with a diameter of 58mm.

58mm: 50/100/200/300/500kg, 1/2/3/5/10ton
25mm: 50/100/200/300/500kg, 1/2ton (MAX:2ton)

Features &Application

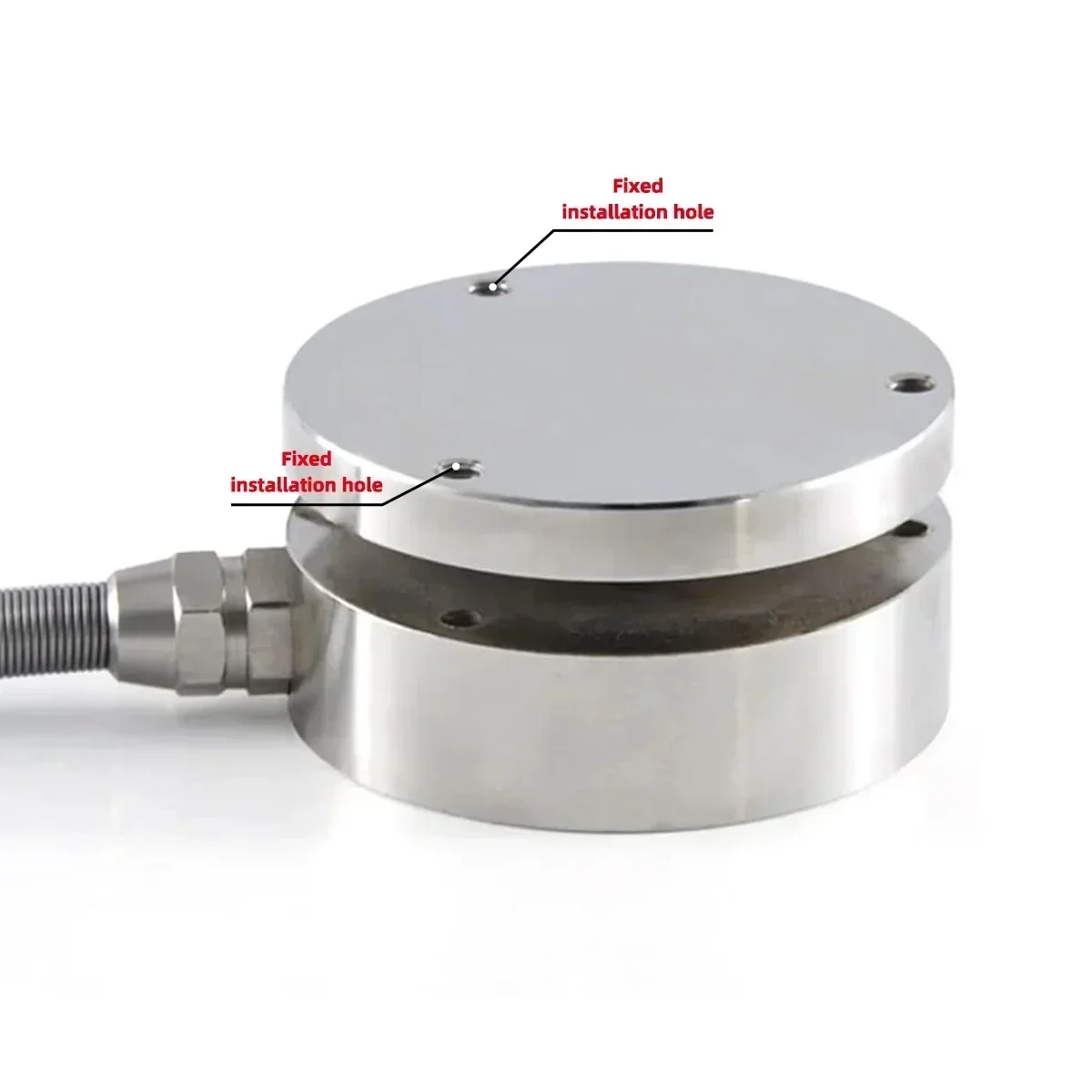

Micro sensor, small shape, stress area is large, thestainless steel material. Apply to all sorts of smallspace load.
Widely used in industrial development in the areas ofmeasurement and control.

Rated load	50/100/200/300/500 kg / 1/2/3/5/10 t
Rated output	1.0-0.2±0.05mV/V
Zero balance	±2%F.S.
Non-linearity	0.1%F.S.
Hysteresis	0.1%F.S.
Repeatability	0.1%F.S.
Creep (30min.)	0.1%F.S.
Temp.effect on output	0.05%F.S. / 10℃
Temp.effect on zero	0.05%F.S. / 10℃
Impedance	700Ω
Insulation resistance	≥5000MΩ / 100VDC
Excitasion voltage	5~15V
Operating temp range	-20～80℃
Safe overload	150%F.S.
Maximum overload	200%F.S.

25mm 58mm Measurement Weighing Sensor Inline Load Cell Miniature Compression and Tension Load Cell for Impact Force
