New OV5640 USB Camera Module UVC Drive-free to 5Pin USB Cable 66 120 160 Degrees Auto Focus HD 5MP for Android WIN XP 7 8 10
You will be redirected to AliExpress to complete your purchase
Specifications
- Brand Name
- UICPAL
- Origin
- Mainland China
- High-concerned chemical
- None
- Condition
- New, New
- Type
- Drive IC
- Supply Voltage
- 5V
- is_customized
- Yes
- Operating Temperature
- -20 to 70
- Application
- Computer
- Package
- SMD, OV5640 Camera Module + 1.5M 5Pin to USB Cable
- Choice
- yes
- semi_Choice
- yes
Product Description
New OV5640 USB Camera Module UVC Drive-free to 5Pin USB Cable 66 120 160 Degrees Auto Focus HD 5MP for Android WIN XP 7 8 10

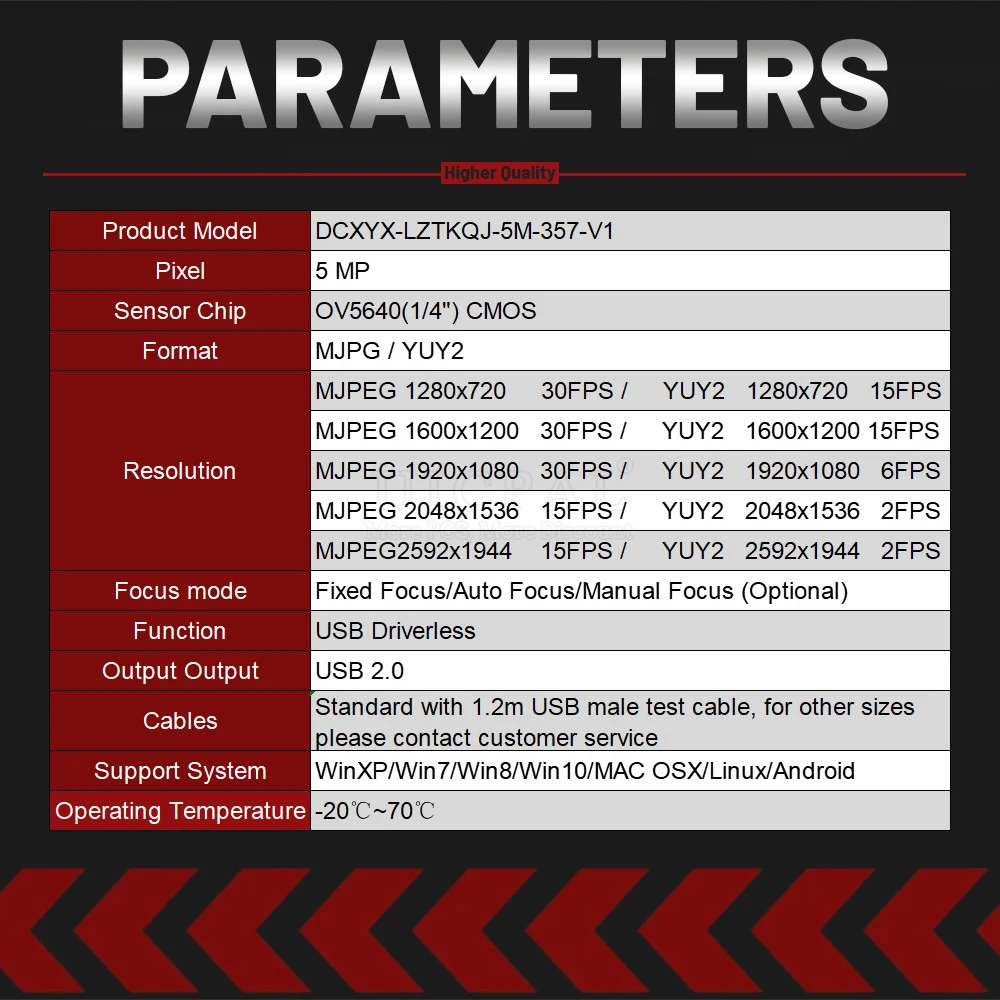

Pixels: 5 megapixels
Chip: OV5640(1/4)CMOS
Format: MJPG/YUY2
Resolution:
MJPEG(1280*720,30FPS) / YUY2(1208*720, 15FPS);
MJPEG(1600*1200,30FPS) / YUY2(1600*1200, 15FPS);
MJPEG(1920*1080,30FPS) / YUY2(1920*1080, 6FPS);
MJPEG(2048*1536,15FPS) / YUY2(2048*1536, 2FPS);
MJPEG(2592*1944,15FPS) / YUY2(2592*1944, 2FPS);
Support system: WIN XP/7/8/10/MAX OSX/Linux/Android
Operating temperature : -20 to +70
Package: OV5640 Camera Module + 1.5M 5Pin to USB Cable
Pros & Cons
Pros
- 5MP HD resolution with multiple frame rate and resolution options for clear image and video capture
- UVC drive-free design allows for plug-and-play use without additional software installation
- Auto-focus functionality and multiple viewing angles for flexible use cases
- Wide compatibility with both Android and Windows operating systems
Cons
- Product description is cut off, leaving some full technical specifications unclear
- No mounting hardware is included, making it difficult to secure the module in fixed positions
- Operating temperature range of -20 to 70°C limits use in extreme hot or cold environments
- No additional accessories like lenses or covers are included in the shipment
Common Questions
What camera chip does this module use, and what is its maximum resolution?
It uses the OV5640 1/4" CMOS chip, with a maximum HD resolution of 1600*1200 at 30FPS in MJPEG format.
What cable is included with this camera module, and how long is it?
It includes a 1.5M 5Pin USB cable for easy connection to compatible devices.
What operating systems and devices is this camera module compatible with?
It is UVC drive-free and works with Android, Windows XP, 7, 8, and 10 systems.
What viewing angles and focus options does this camera module offer?
It features auto-focus functionality and available viewing angles of 66, 120, and 160 degrees.
What is included in the product packaging for this camera module?
The package includes the OV5640 camera module and a 1.5M 5Pin to USB cable as specified in the product specs.
Product information last updated on March 6, 2026
